    Rollmatic () -



SH6002 ROLLMATIC ()



1 2
3 4

5
1
.
1 C00637 - MOTOR
2 S00062 ( 1 ) - ELECTRIC BOARD (1 SPEED VERSIONS)
3 S00267 ( ) - ELECTRIC BOARD (inverter version)
4 S00055 - EMERGENCY BUTTON
5 S00056 - START BUTTON
6 S00043 - MICROSWITCH
7 C00223 - MAIN SWITCH
8 S00438 ( ) – SPEED VARIATOR (inverter version)
9 G00322 - PEDAL CONTROL WITH SHAFT
11 C00443 D.80 – SWIVEL WHEEL
12 C00442 D.80 + – SWIVEL WHEEL + BRAKE
13 D02007 - BELT TIGHTNING SCREW
14 D02110   - MOTOR SUPPORT
15 D01836   - MOTOR PULLEY
2
.
1 C00650 - INVERSION LEVER HANDLE
2 S00043 – REVERSAL LEVER MICRO
3 C00065 – STOP KNOB
4 D02125 – DOUGH THICKNESS RACK
5 D02167 - THICKNESS RACK STOPPER
6 D01688 – ALU. HANDLE
7 D02001 - HANDLE TOOTH
8 C00300 CO 26 - HANDLE SPRING CO 26
9 S00068 - GRADUATED STICKER
10 D00948   – FRONT COVER
11 D03506 - SCRAPER SPRING
12 D01060   – LOWER SCRAPER
13 D02096 – UPPER SCRAPER
14 C00259 – WING NUT
15 D02130   - HANDLE SHAFT
16 D01050   16X660 - SPACER 16X660
17 D03454   – SIDE PROTECTION
18 D01048 – UPPER CYLINDER
19 D01049 – LOWER CYLINDER
20 C00175     – BEARING
21 C00007 - SEEGER RING
22 D01809 Z15 25x16 - PINION BUSHING Z15 25x16
23 G00258 - FLANGE WITH BEARING
24 D01808   - CYLINDER SPACER
25 D01811 D.32X13 IN BRONZO – BRONZE TWIN-SCREW
26 D01812   – DOUBLE TOOTHED WHEEL
27 D01810 - PINION
28 D01814 - CYLINDER SHAFT WASHER
29 G00287   – COMPLETE LOWER CYLINDER
30 D02129 - HANDLE CONNECTING ROD
31 C00312 TR 50 - SPRING TR50
32 D01829 – CONNECTING ROD PIN
33 D01830 – CONNECTING ROD BUSHING
34 G00290 - CONNECTING ROD / DRIVEN SIDE
35 D03430 – FRONT CONNECTING-ROD
36 D01767 - FLANGE
37 C00165       – BEARING
38 D01773 - SHAFT
39 D01834 Z23 - THREADED PINION Z23
40 C00445 Z16– FREE WHEEL Z16
41 G00260 – LEFT COMPLETE FLANGE
42 C00571      - TRANSMISSION CHAIN
43 C00570       -  FREE WHEEL CHAIN
44 G00259 – RIGHT COMPLETE FLANGE

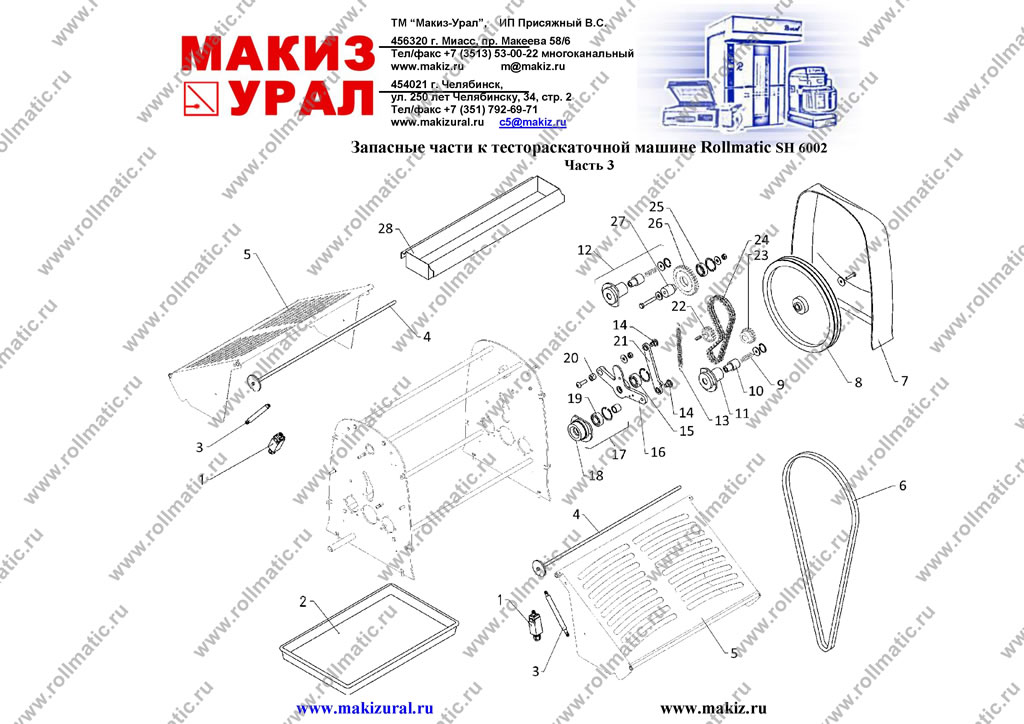

3
.
1 S00043 – SAFETY COVER MICRO
2 D01744 – FLOUR TRAY
3 C00298     - GAS SPRING
4 D02186 - SAFETY GRID ROD
5 D03746 - – R-L SAFETY GRID
6 C00154 - BELT
7 D00945 - BACK COVER
8 D01058 - TRANSMISSION PULLEY
9 C00305 - SPRING
10 D01766 - SPRING SUPPORT
11 D01763 - FLANGE
12 G00256 - FLANGE
13 C00312 TR 50 - SPRING TR50
14 D01829 – CONNECTING ROD PIN
15 C00175      – BEARING
16 G00291 - CONNECTING ROD/DRIVING SIDE
17 G00258 -  FLANGE WITH BEARING
18 D01768 - FLANGE
19 C00175      – BEARING
20 D01830   – CONNECTING ROD BUSHING
21 D03430   – FRONT CONNECTING ROD
22 D01761 Z17 – PINION Z17
23 D01040 Z17 – PINION Z17
24 C00572     - DOUBLE CHAIN
25 C00169      – BEARING
26 D01762 Z35 – PINION Z35
27 D01764 - PIN SUPPORT
28 D02141 – FLOUR TRAY

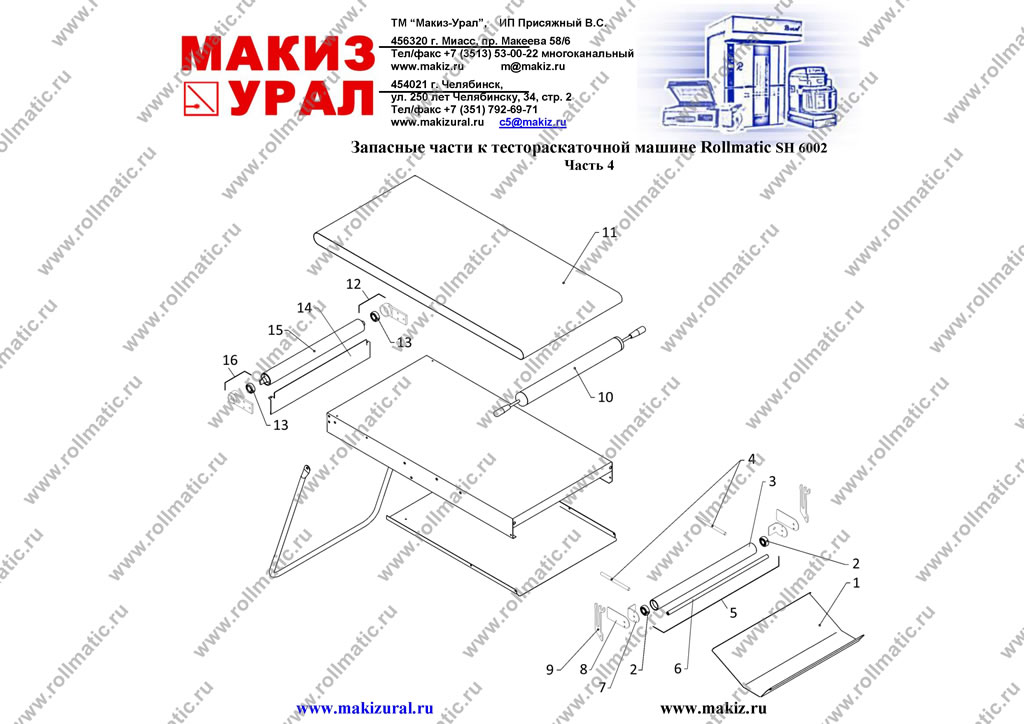

4
.
1 D02166 - - R/L DOUGH TRAY
2 C00184      – BEARING
3 D02146   - BELT TIGHTNING ROLLER
4 D02139 – BELT TIGHTNING SCREW
5 G00323   – COMPLETE BELT TIGHTENER ROLLER
6 D02145   - BELT TIGHTNING ROLLER SHAFT
7 D02135 - BELT ROLLER SUPPORT
8 D02136 - – L/R BELT TIGHTNER COVER
9 D01831 – ROLLING PIN SUPPORT
10 G00274 – REELER
11 S00289 950 - BELT
11 S00300 1200 - BELT
11 S00304 1300 - BELT
11 S00305 1400 - BELT
11 S00309 1500 - BELT
12 G00284 -  DRIVING CYLINDER SUPPORT
13 C00168       – BEARING
14 D03431   – UNDERTABLE COVER
15 D01047   – BELT DRIVING ROLLER
16 G00283 -  DRIVING CYLINDER SUPPORT

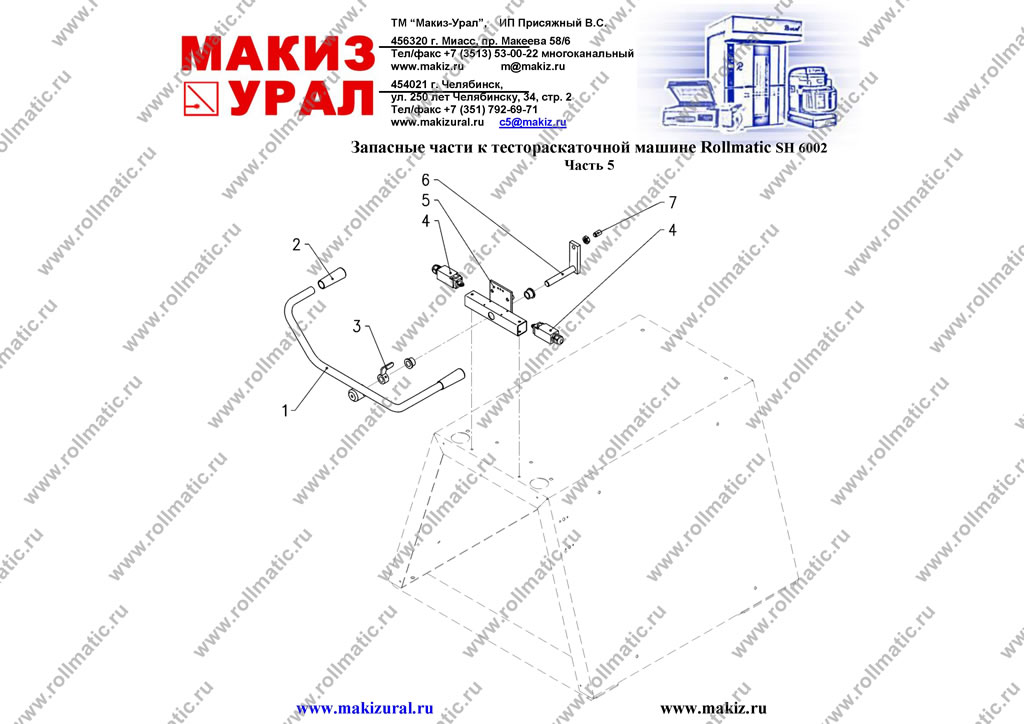

5
.
1 D01684 – INVERSION LEVER
2 C00293 - HANDLE
3 D02180 – INVERSION MICRO LEVER SUPPORT
4 S00043 – REVERSE LEVER MICRO
5 D02181 - MICROSWITCH AND LEVER SUPPORT
6 D02176   - INVERSION MICRO LEVER
7 C00265 - SPRING PLUNGER

, -, , , , , , -, , , , , .
( ) , 100-150 . 50 , 1000 .
48 .
