SH50B-SH50-SH60-SH500-SH600 Rollmatic ()



1 2
3 4
1

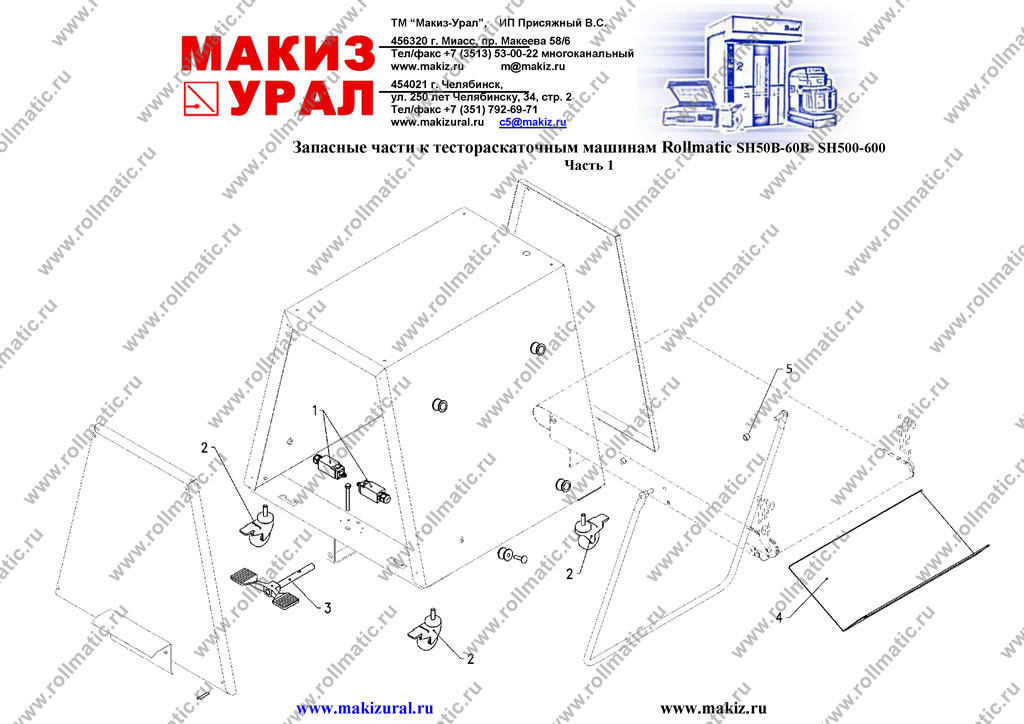

. SH50B SH500 SH60B SH600
1 S00043 S00043 - MICROSWITCH
2 C00437 C00437 – WHEEL WITH BRAKE
3 G00322 G00322 - PEDAL CONTROL WITH SHAFT
4 D01999 D02090 -– R/L DOUGH TRAY
5 D03729 D03729 - SPACER
2

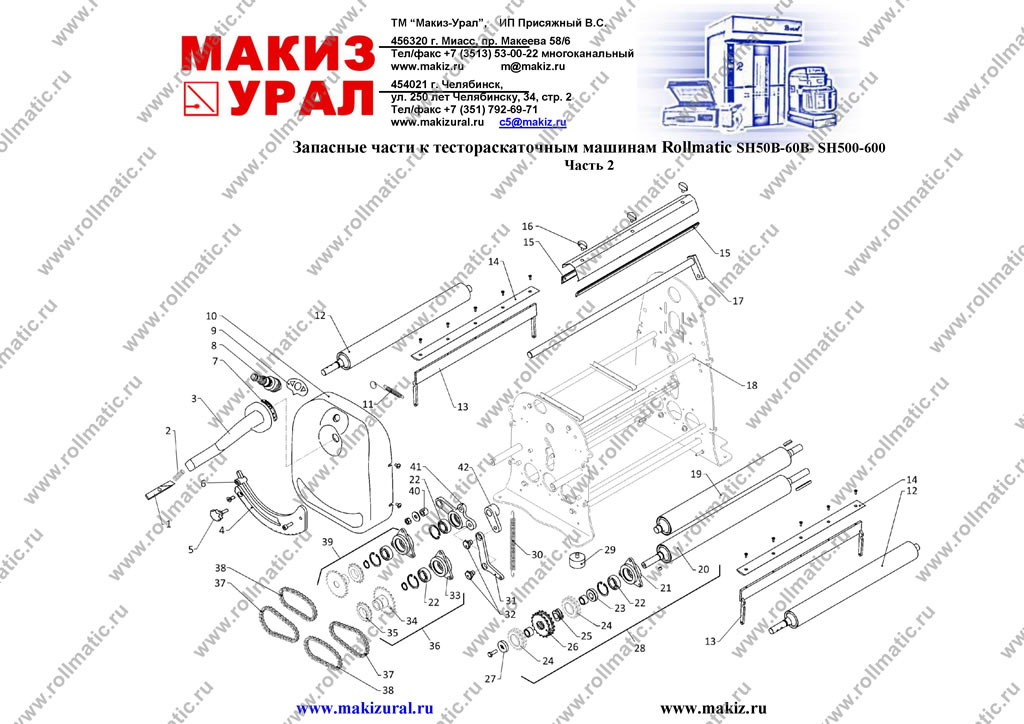

. SH50B SH500 SH60B SH600
1 D02001 D02001 - HANDLE TOOTH
2 C00300 C00300 CO 26 - HANDLE SPRING CO 26
3 D01689 D01689   – ALU. HANDLE
4 D01967 D01967   - DOUGH THICKNESS RACK
5 C00065 C00065 – STOP KNOB
6 D02167 D02167 - THICKNESS RACK STOPPER
7 S00069 S00069 - GRADUATED STICKER
8 C00225 C00225 - JOY-STICK AND CONTACTS
9 C00597 C00597 - JOYSTICK LABEL
10 D00997 D00997   – FRONT COVER
11 D01212 D01212 - SCRAPER SPRING
12 D01992 D02070 – BELT DRIVING ROLLER
13 D02023 D02023 . - LOWER SCRAPER SUPPORT
14 D01988 D02095 / – R/L LOWER SCRAPER
15 D02036 D02096 / – R-L UPPER SCRAPER
16 C00609 C00609 – WING NUT
17 D02032 D02032 - HANDLE SHAFT
18 D01994 D01994 - SIDE SPACER
19 D01990 D02068   – UPPER CYLINDER
20 D01991 D02069   – LOWER CYLINDER
21 D01983 D01983   - FLANGE
22 C00168 C00168 – BEARING
23 D02004 D02004 - BUSHING SPACER
24 D01980 D01980   z=16 3/8"– DOUBLE TOOTHED WHEEL
25 D01997 D01997 D.32X13 – BRONZE TWIN-SCREW
26 D01996 D01996   Z=16 – DOUBLE TOOTHED WHEEL
27 D02006 D02006   - END BUSHING
28 G00247 G00249 – COMPLETE LOWER CYLINDER
29 C00050 C00050 - RUBBER PAD
30 C00312 C00312 TR 50 - SPRING TR50
31 D02030 D02030 – FRONT AND BACK CONNECTING ROD
32 D01829 D01829   – CONNECTING ROD PIN
33 D01983 D01983   - FLANGE
34 D01982 D01982 Z29 - THREADED PINION Z29
35 C00445 C00445 Z16 – FREE WHEEL Z16
36 G00224 G00225 CILINDRO TRAZIONE TAPPETO – BELT MOVING ROLLER
37 C00557 C00557 3/8” - TRANSMISSION CHAIN
38 C00558 C00558   1/2"X1/8" - FREE WHEEL CHAIN
39 G00222 G00223   – BELT DRIVING ROLLER SX
40 D01830 D01830   – CONNECTING ROD BUSH
41 D01978 D01978 – FRONT CONNECTING-ROD
42 D02029 D02029   - HANDLE CONNECTING ROD
3

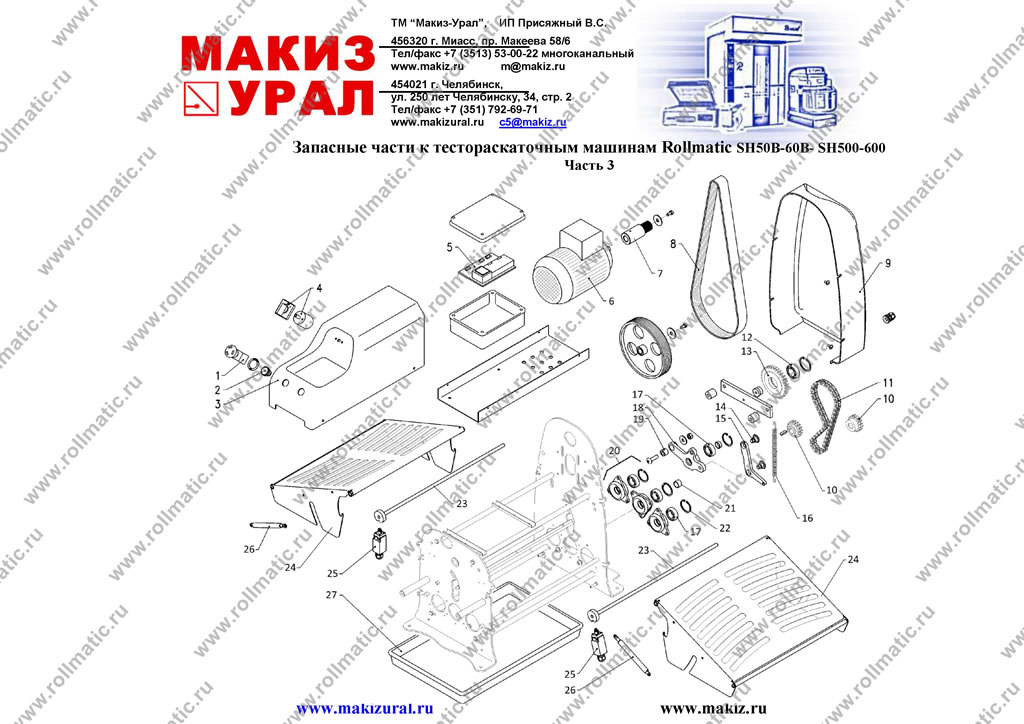

POS. SH50B SH500 SH60B SH600
1 S00055 S00055 - EMERGENCY BUTTON
2 S00056 S00056 - START BUTTON
3 D00991 D00952 – UPPER COVER
4 C00223 C00223 - MAIN SWITCH
5 S00062 S00062 230/400 3PH - ELECTRIC BOARD 230/400 3PH
6 C00331 C00331 0.55KW - MOTOR
7 D01995 D01995   - MOTOR PULLEY
8 C00142 C00142 - BELT
9 D00996 D00996   – BACK COVER
10 D01981 D01981 Z17 – PINION Z17
11 C00559 C00559 3/8”- DOUBLE CHAIN 3/8”
12 C00169 C00169 6005 – BEARING 6005
13 D01762 D01762 Z35 – PINION Z35
14 D01829 D01829   – CONNECTING ROD PIN
15 D02030 D02030 – FRONT AND BACK CONNECTING ROD
16 C00312 C00312 TR 50  - SPRING TR 50
17 C00168 C00168   – BEARING
18 D01979 D01979 – BACK CONNECTING-ROD
19 D01830 D01830   – CONNECTING ROD BUSH
20 G00248 G00248 – BEARING SUPPORT
21 D02042 D02042 - UPPER CYLINDER GEAR SPACER
22 C00011 C00011 D.42 UNI 7437 - SEEGER RING D.42 UNI 7437
23 D02045 D02098 - SAFETY GRID ROD
24 D03724 D02064 - - R-L DAFETY GRID
25 S00043 S00043 - MICROSWITCH
26 C00298 C00298   –  GAS SPRING
27 C00103 C00104   – FLOUR TRAY
4

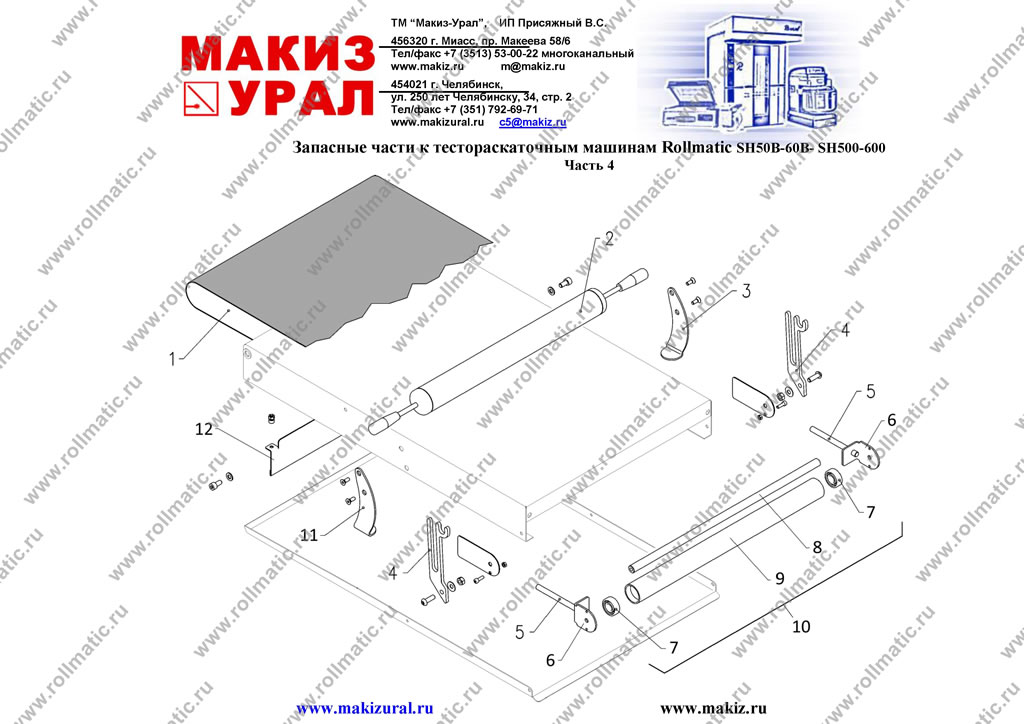

. SH50B SH500 SH60B SH600
1 S00285 - 700 - BELT
1 S00287 - 800 - BELT
1 S00288 - 900 - BELT
1 S00293 S00295 1000 - BELT
1 S00299 S00301 1200 - BELT
1 - S00306 1400 - BELT
2 G00272 G00274 – REELER
3 D02061 D02061 - LEFT TABLE SUPPORT
4 D01831 D01831 - ROLLING PIN SUPPORT
5 D02007 D02007 – BELT TIGHTNING SCREW
6 D01984 D01984 - BELT ROLLER SUPPORT
7 C00174 C00174      –    BEARING
8 D02024 D02085 - RETURN ROLLER SHAFT
9 D02038 D02094 - BELT TIGHTNING ROLLER
10 G00269 G00271 – COMPLETE BELT TIGHTENER ROLLER
11 D02060 D02060 - RIGHT TABLE SUPPORT
12 D03413 -   – UNDERTABLE COVER

, -, , , , , , -, , , , , .
